How to Determine the Quality of an XT60 Wire
To assess the quality of an XT60 wire, consider the following factors:
Conductor Material: High-quality XT60 wires typically use pure copper or tin-plated copper conductors, which ensure low resistance and efficient current transmission. Check if the wire is specified to use these materials.
Wire Gauge: The wire gauge, such as 12 AWG or 10 AWG, affects the current-carrying capacity. Higher gauge wires (with a larger cross-sectional area) are preferred for high-power applications. Ensure the wire gauge matches the power requirements of your drone.
Insulation Material: Quality wires have a thick, durable insulation layer that provides effective electrical insulation and heat resistance. Inspect the insulation for any signs of wear or damage.
Connector Quality: Examine the XT60 connectors for clean and uniform soldering. High-quality connectors should have solid, well-soldered joints without any cold or weak solder spots.
Brand and Certification: Reputable brands and certified wires are more likely to meet quality standards. Look for wires from well-known manufacturers and those that adhere to industry standards.
Durability and Flexibility: High-quality wires should be flexible and resistant to wear and tear. Check for any signs of brittleness or cracking.
Electrical Testing: If possible, test the wire under actual conditions to check for overheating or voltage drops, ensuring it meets the specified current capacity.
Common Uses of XT60 Wires in Drones

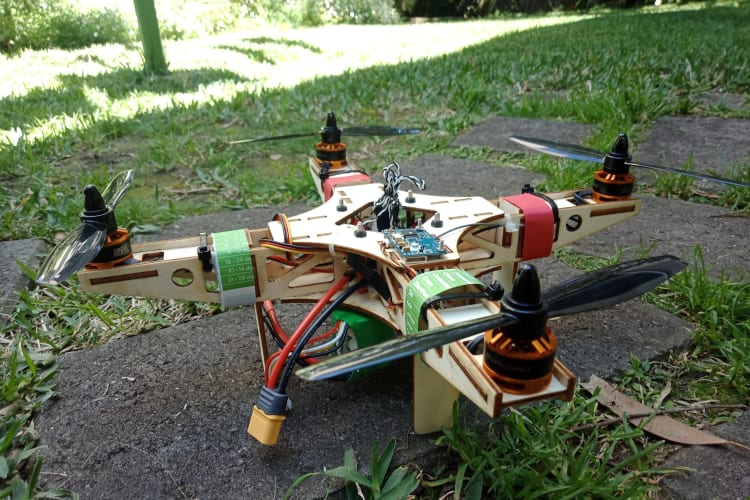

XT60 wires in drones are primarily used for:Battery Connection: They are commonly used to connect the drone's battery to the power system. XT60 connectors ensure a stable and reliable connection for transmitting power from the battery to the drone’s electronic components.
Power Distribution: In some high-performance drones, XT60 connectors are used in power distribution boards (PDB) to distribute power from the battery to various parts of the drone, such as the motors, flight controller, and camera.
High Current Transmission: XT60 wires are designed to handle high currents, making them suitable for drones with high-power motors and components. They effectively manage the power requirements of high-performance drone systems.
In summary, XT60 wires are essential for reliable power transmission in drones. Ensuring their quality through material checks, proper gauge, and robust connectors is crucial for optimal performance and safety.
